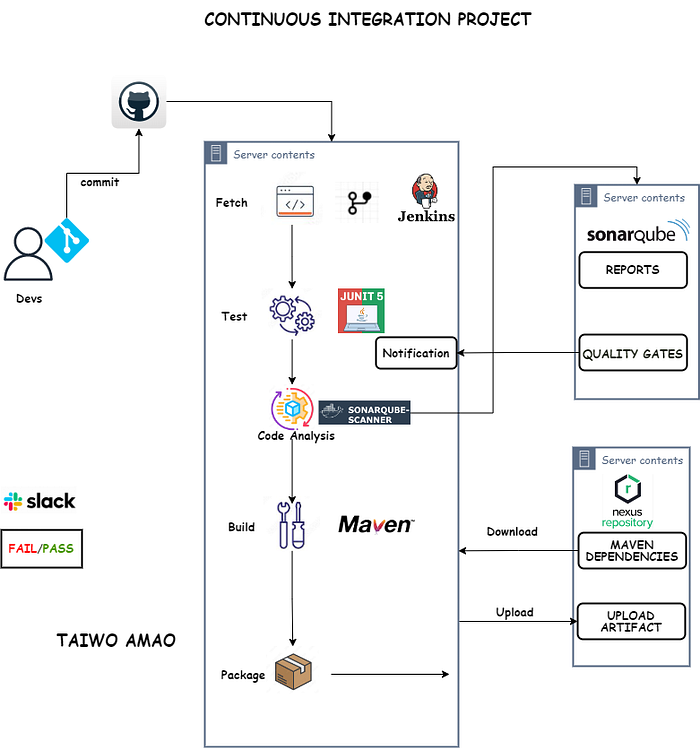

Continuous Integration Using jenkins, Nexus, Sonarqube and Slack

Taiwo Amao

Published in

AWS Tip

11 min readJan 28, 2023

Project Source

Pre-requisites:

AWS Account
GitHub account
Jenkins
Nexus
SonarQube
Slack

Step-1: Create Keypair

We will need a key-pair while launching our instances. Create a keypair and download the private key to your local system. Make sure to remember where to download your key. We will need this key to SSh our servers.

Step-2: Create Security Groups for Jenkins, Nexus and SonarQube

Jenkins SecGrp

Name: jenkins-SG
Allow: SSH from MyIP
Allow: 8080 from Anywhere IPv4 and IPv6 (We will create a Github webhook which will trigger Jenkins)

Nexus SecGrp

Name: nexus-SG
Allow: SSH from MyIP
Allow: 8081 from MyIP and Jenkins-SG

SonarQube SecGrp

Name: sonar-SG
Allow: SSH from MyIP
Allow: 80 from MyIP and Jenkins-SG

-Once we created sonar-SG, we will add another entry to jenkins Inbound rule as Allow access on 8080 from sonar-SG. SonarQube will send the reports back to Jenkins.

Step-3: Create EC2 instances for Jenkins, Nexus and SonarQube

Jenkins Server Setup

We will create Jenkins-server with below properties and userdata script.

Name: jenkins-server
AMI: Ubuntu 20.04
SecGrp: jenkins-SG
InstanceType: t2.small
KeyPair: vprofile-ci-key
Additional Details: userdata below

Jenkins Userdata script

#!/bin/bash
sudo apt update
sudo apt install openjdk-11-jdk -y
sudo apt install maven -y
curl -fsSL https://pkg.jenkins.io/debian-stable/jenkins.io.key | sudo tee \
  /usr/share/keyrings/jenkins-keyring.asc > /dev/null
echo deb [signed-by=/usr/share/keyrings/jenkins-keyring.asc] \
  https://pkg.jenkins.io/debian-stable binary/ | sudo tee \
  /etc/apt/sources.list.d/jenkins.list > /dev/null
sudo apt-get update
sudo apt-get install jenkins -y
###

Nexus Server Setup

We will create Nexus-server with below properties and userdata script.

Name: nexus-server
AMI: Amazon Linux-2
InstanceType: t2.medium
SecGrp: nexus-SG
KeyPair: vprofile-ci-key
Additional Details: userdata below

Nexus Userdata script

#!/bin/bash
yum install java-1.8.0-openjdk.x86_64 wget -y
mkdir -p /opt/nexus/
mkdir -p /tmp/nexus/
cd /tmp/nexus/
NEXUSURL="https://download.sonatype.com/nexus/3/latest-unix.tar.gz"
wget $NEXUSURL -O nexus.tar.gz
EXTOUT=`tar xzvf nexus.tar.gz`
NEXUSDIR=`echo $EXTOUT | cut -d '/' -f1`
rm -rf /tmp/nexus/nexus.tar.gz
rsync -avzh /tmp/nexus/ /opt/nexus/
useradd nexus
chown -R nexus.nexus /opt/nexus
cat <<EOT>> /etc/systemd/system/nexus.service
[Unit]
Description=nexus service
After=network.target

[Service]
Type=forking
LimitNOFILE=65536
ExecStart=/opt/nexus/$NEXUSDIR/bin/nexus start
ExecStop=/opt/nexus/$NEXUSDIR/bin/nexus stop
User=nexus
Restart=on-abort

[Install]
WantedBy=multi-user.target

EOTecho 'run_as_user="nexus"' > /opt/nexus/$NEXUSDIR/bin/nexus.rc
systemctl daemon-reload
systemctl start nexus
systemctl enable nexus

SonarQube Server Setup

We will create sonar-server with below properties and userdata script.

Name: sonar-server
AMI: Ubuntu 18.04
InstanceType: t2.medium
SecGrp: sonar-SG
KeyPair: vprofile-ci-key
Additional Details: userdata below

Sonar Userdata script

#!/bin/bash
cp /etc/sysctl.conf /root/sysctl.conf_backup
cat <<EOT> /etc/sysctl.conf
vm.max_map_count=262144
fs.file-max=65536
ulimit -n 65536
ulimit -u 4096
EOT
cp /etc/security/limits.conf /root/sec_limit.conf_backup
cat <<EOT> /etc/security/limits.conf
sonarqube   -   nofile   65536
sonarqube   -   nproc    409
EOT

sudo apt-get update -y
sudo apt-get install openjdk-11-jdk -y
sudo update-alternatives --config javajava -versionsudo apt update
wget -q https://www.postgresql.org/media/keys/ACCC4CF8.asc -O - | sudo apt-key add -sudo sh -c 'echo "deb http://apt.postgresql.org/pub/repos/apt/ `lsb_release -cs`-pgdg main" >> /etc/apt/sources.list.d/pgdg.list'
sudo apt install postgresql postgresql-contrib -y
#sudo -u postgres psql -c "SELECT version();"
sudo systemctl enable postgresql.service
sudo systemctl start  postgresql.service
sudo echo "postgres:admin123" | chpasswd
runuser -l postgres -c "createuser sonar"
sudo -i -u postgres psql -c "ALTER USER sonar WITH ENCRYPTED PASSWORD 'admin123';"
sudo -i -u postgres psql -c "CREATE DATABASE sonarqube OWNER sonar;"
sudo -i -u postgres psql -c "GRANT ALL PRIVILEGES ON DATABASE sonarqube to sonar;"
systemctl restart  postgresql
#systemctl status -l   postgresql
netstat -tulpena | grep postgres
sudo mkdir -p /sonarqube/
cd /sonarqube/
sudo curl -O https://binaries.sonarsource.com/Distribution/sonarqube/sonarqube-8.3.0.34182.zip
sudo apt-get install zip -y
sudo unzip -o sonarqube-8.3.0.34182.zip -d /opt/
sudo mv /opt/sonarqube-8.3.0.34182/ /opt/sonarqube
sudo groupadd sonar
sudo useradd -c "SonarQube - User" -d /opt/sonarqube/ -g sonar sonar
sudo chown sonar:sonar /opt/sonarqube/ -R
cp /opt/sonarqube/conf/sonar.properties /root/sonar.properties_backup
cat <<EOT> /opt/sonarqube/conf/sonar.properties
sonar.jdbc.username=sonar
sonar.jdbc.password=admin123
sonar.jdbc.url=jdbc:postgresql://localhost/sonarqube
sonar.web.host=0.0.0.0
sonar.web.port=9000
sonar.web.javaAdditionalOpts=-server
sonar.search.javaOpts=-Xmx512m -Xms512m -XX:+HeapDumpOnOutOfMemoryError
sonar.log.level=INFO
sonar.path.logs=logs
EOTcat <<EOT> /etc/systemd/system/sonarqube.service
[Unit]
Description=SonarQube service
After=syslog.target network.target[Service]
Type=forkingExecStart=/opt/sonarqube/bin/linux-x86-64/sonar.sh start
ExecStop=/opt/sonarqube/bin/linux-x86-64/sonar.sh stopUser=sonar
Group=sonar
Restart=alwaysLimitNOFILE=65536
LimitNPROC=4096
[Install]
WantedBy=multi-user.target
EOTsystemctl daemon-reload
systemctl enable sonarqube.service
#systemctl start sonarqube.service
#systemctl status -l sonarqube.service
apt-get install nginx -y
rm -rf /etc/nginx/sites-enabled/default
rm -rf /etc/nginx/sites-available/default
cat <<EOT> /etc/nginx/sites-available/sonarqube
server{
    listen      80;
    server_name sonarqube.groophy.in;    access_log  /var/log/nginx/sonar.access.log;
    error_log   /var/log/nginx/sonar.error.log;    proxy_buffers 16 64k;
    proxy_buffer_size 128k;    location / {
        proxy_pass  http://127.0.0.1:9000;
        proxy_next_upstream error timeout invalid_header http_500 http_502 http_503 http_504;
        proxy_redirect off;

        proxy_set_header    Host            \$host;
        proxy_set_header    X-Real-IP       \$remote_addr;
        proxy_set_header    X-Forwarded-For \$proxy_add_x_forwarded_for;
        proxy_set_header    X-Forwarded-Proto http;
    }
}
EOT
ln -s /etc/nginx/sites-available/sonarqube /etc/nginx/sites-enabled/sonarqube
systemctl enable nginx.service
#systemctl restart nginx.service
sudo ufw allow 80,9000,9001/tcpecho "System reboot in 30 sec"
sleep 30
reboot

Step-4: Post Installation Steps

For Jenkins Server:

We need to SSH our jenkins server and check system status for Jenkins. Then we will get initialAdmin password from directory /var/lib/jenkins/secrets/initialAdminPassword

sudo -i
system status jenkins
cat /var/lib/jenkins/secrets/initialAdminPassword

Go to browser, http://<public_ip_of_jenkins_server>:8080, enter initialAdminPasswrd. We will also install suggested plugins. Then we will create our first admin user.
We will install below plugins for Jenkins.

Maven Integration
Github Integration
Nexus Artifact Uploader
SonarQube Scanner
Slack Notification
Build Timestamp

For Nexus Server:

We need to SSH our nexus server and check system status for nexus.

sudo -i
system status nexus

Go to browser, http://<public_ip_of_nexus_server>:8081 ,click sign-in. Initial password will be located /opt/nexus/sonatype-work/nexus3/admin.password

cat /opt/nexus/sonatype-work/nexus3/admin.password

Username is admin, paste password from previous step. Then we need to setup our new password and select Disable Anonymous Access.
We select gear symbol and create repository. This repo will be used to store our release artifacts.

maven2 hosted
Name: vprofile-release
Version policy: Release

Next we will create a maven2 proxy repository. Maven will store the dependecies in this repository, whenever we need any dependency for our project it will check this proxy repo in Nexus first and download it for project. Proxy repo will download the dependecies from maven2 central repo at first.

maven2 proxy
Name: vpro-maven-central
remote storage: https://repo1.maven.org/maven2/

This repo will be used to store our snapshot artifacts. That means any artifact with -SNAPSHOT extension will be stored in this repository.

maven2 hosted
Name: vprofile-snapshot
Version policy: Snapshot

Last repo, will be maven2 group type. We will use this repo to group all maven repositories.

maven2 group
Name: vpro-maven-group
Member repositories:
 - vpro-maven-central
 - vprofile-release
 - vprofile-snapshot

For SonarQube Server:

Go to browser, http://<public_ip_of_sonar_server>.
Login with username admin and password admin.

Step-5: Create a repository in Github

We need to create a private repository in the Github to be used with this project.
The content will be cloned from below link:

git clone -b ci-jenkins git@github.com:rumeysakdogan/vprofileproject-all.git

Step-6: Build Job with Nexus Repo

Our first job will be Build the Artifact from Source Code using Maven. We need JDK8 and Maven to be installed in jenkins to complete the job succesfully.
Since our application is using JDK8, we need to install Java8 in jenkins. Manage Jenkins -> Global Tool Configuration We will install JDK8 manually, and specify its PATH in here.

Under JDK -> Add JDK
Name: OracleJDK8
untick Install Automatically
JAVA_HOME: < we will get after next step >

Currently our jenkins has JDK-11 install, we can SSH into our jenkins server and install JDK-8. Then get the PATH to JDK-8 to replace in above step. So after installation we will see our JAVA_HOME for JDK-8 is /usr/lib/jvm/java-8-openjdk-amd64

sudo apt update -y
sudo apt install openjdk-8-jdk -y
sudo -i
ls /usr/lib/jvm
### we should get both jdk-11 and jdk-8 in this path ###
java-1.11.0-openjdk-amd64  java-11-openjdk-amd64  openjdk-11
java-1.8.0-openjdk-amd64   java-8-openjdk-amd64

Next we will setup our Maven.

Name: MAVEN3
version : keep same

Next we need to add Nexus login credentials to Jenkins. Go to Manage Jenkins -> Manage Credentials -> Global -> Add Credentials

username: admin
password: <pwd_setup_for_nexus>
ID: nexuslogin
description: nexuslogin

We will create Jenkinsfile for Build pipeline as below. The variables mentioned in pom.xml repository part and settings.xml will be declared in Jenkinsfile with their values to be used during execution. Update Pipeline file and push to GitHub.

pipeline {
    agent any
    tools {
        maven "MAVEN3"
        jdk "OracleJDK8"
    }

    environment {
        SNAP_REPO = 'vprofile-snapshot'
        NEXUS_USER = 'admin'
        NEXUS_PASS = 'admin'
        RELEASE_REPO = 'vprofile-release'
        CENTRAL_REPO = 'vpro-maven-central'
        NEXUSIP = '172.31.10.139'
        NEXUSPORT = '8081'
        NEXUS_GRP_REPO = 'vpro-maven-group'
        NEXUS_LOGIN = 'nexuslogin'
    }    stages {
        stage('Build') {
            steps {
                sh 'mvn -s settings.xml -DskipTests install'
            }
        }
    }
}

We will create a New Job in Jenkins with below properties:

Pipeline from SCM
Git
URL: <url_from_project> I will use SSH link
Crdentials: we will create github login credentials
#### add Jenkins credentials for github ####
Kind: SSH Username with private key
ID: githublogin
Description: githublogin
Username: git
Private key file: paste your private key here
#####
Branch: */ci-jenkins
path: Jenkinsfile

Error is not gone, we need to login jenkins server via SSH and complete host-key checking step. After below command, our host-key will be stored in .ssh/known_hosts file.Then error will be gone.

sudo -i
sudo su - jenkins
git ls-remote -h -- git@github.com:rumeysakdogan/vprociproject.git HEAD

Now its Build time. Our build pipeline is successful!

Step-7: Setup GitHub Webhook and update Jenkins Job

In this step, we will add GitHub webhook to our repository so that after a new commit Build pipeline will be triggered automatically.
Go to Github repository, Settings -> Webhooks -> Add JenkinsURL with /github-webhook/ at the end.

Next we will go to Jenkins and add below configuration to our vprofile-ci-pipeline jon.

Build Trigger: GitHub hook trigger for GITScm polling

We can add a post action to our pipeline script and commit/push changes to GitHub.

stage('Build') {
            steps {
                sh 'mvn -s settings.xml -DskipTests install'
            }
            post {
                success {
                    echo "Now Archiving."
                    archiveArtifacts artifacts: '**/*.war'
                }
            }
        }

stage('Test') {
           steps {
            sh 'mvn test'
           }
        }

        stage('Checkstyle Analysis'){
            steps {
                sh 'mvn -s settings.xml checkstyle:checkstyle'
            }
        }

Our job is triggered automatically after git push. And build is successful.

Step-8: Code Analysis with SonarQube

The Unit test/Code Coverage reports are generated under Jenkins workspace target directory. But these reports are not human readable. We need a tool which can scan and analyze the coed and present it in human readable format in a Dashboard. We will use SonarQube solution of this problem. Two things need to setup:
SonarScanner tool in Jenkins to scan the code
We need SonarQube information in jenkins so that Jenkins will know where to upload these reports
Lets start with SonarScanner tool configuration. Go to Manage Jenkins -> Global Tool Configuration

Add sonar scanner
name: sonarscanner
tick install automatically

Next we need to go to Configure System, and find SonarQube servers section

tick environment variables
Add sonarqube
Name: sonarserver
Server URL: http://<private_ip_of_sonar_server>
Server authentication token: we need to create token from sonar website

We will add our sonar token to global credentials.

Kind: secret text
Secret: <paste_token>
name: sonartoken
description: sonartoken

We will add sonarQube code for our pipeline and commit/push changes to GitHub.

##new environment variables to be added to environment##
SONARSERVER = 'sonarserver'
SONARSCANNER = 'sonarscanner'

##new stages to be added##
 stage('CODE ANALYSIS with SONARQUBE') {

          environment {
             scannerHome = tool "${SONARSCANNER}"
          }          steps {
            withSonarQubeEnv("${SONARSERVER}") {
               sh '''${scannerHome}/bin/sonar-scanner -Dsonar.projectKey=vprofile \
                   -Dsonar.projectName=vprofile-repo \
                   -Dsonar.projectVersion=1.0 \
                   -Dsonar.sources=src/ \
                   -Dsonar.java.binaries=target/test-classes/com/visualpathit/account/controllerTest/ \
                   -Dsonar.junit.reportsPath=target/surefire-reports/ \
                   -Dsonar.jacoco.reportsPath=target/jacoco.exec \
                   -Dsonar.java.checkstyle.reportPaths=target/checkstyle-result.xml'''
            }          }

Our job is completed succesfully.

We can see quality gate results in SonarQube server.

We can create our own Quality Gates and add to our project as well. click Quality gate -> Create. add Condition. You can give Bug is greater than 80 then Save it. click on projectname it will have a dropdown, click Quality Gate and choose the new Quality gate you have created.

Next we will create a Webhook in SonarQube to send the analysis results to jenkins.

http://<private_ip_of_jenkins>:8080/sonarqube-webhook

We will add below stage to our pipeline and commit changes to Github.

stage('QUALITY GATE') {
            steps {
                timeout(time: 10, unit: 'MINUTES') {
               waitForQualityGate abortPipeline: true
            }
            }
}

We can see BUILD is successful!

Step-9: Publish Artifact to Nexus Repo

In this step, we will automate process of publishing latest artifact to Nexus repository after successful build. We need to add Build-Timestamp to artifact name to get unique artifact each time. We can go to Manage Jenkins -> Configure System under Build Timestamp we can update the pattern as our wish.

yy-MM-dd_HHmm

We will add below stage to our pipeline and see results.

stage('UPLOAD ARTIFACT') {
                steps {
                    nexusArtifactUploader(
                        nexusVersion: 'nexus3',
                        protocol: 'http',
                        nexusUrl: "${NEXUSIP}:${NEXUSPORT}",
                        groupId: 'QA',
                        version: "${env.BUILD_ID}-${env.BUILD_TIMESTAMP}",
                        repository: "${RELEASE_REPO}",
                        credentialsId: ${NEXUS_LOGIN},
                        artifacts: [
                            [artifactId: 'vproapp' ,
                            classifier: '',
                            file: 'target/vprofile-v2.war',
                            type: 'war']
                        ]
                    )
                }
        }

Build is successful.

Artifact is uploaded to Nexus repository.

Step-10: Slack Notification

We will Login to slack and create a workspace by following the prompts. Then we will create a channel jenkins-cicd in our workspace.
Next we need to Add jenkins app to slack. Search in Google with Slack apps. Then search for jenkins add to Slack. We will choose the channel jenkins-cicd. It will give us to setup instructions, from there copy Integration token credential ID .
We will go to Jenkins dashboard Configure system -> Slack

Workspace:  example (in the workspace url example.slack.com)
credential: slacktoken
default channel: #jenkins-cicd

We will add our sonar token to global credentials.

Kind: secret text
Secret: <paste_token>
name: slacktoken
description: slacktoken

We will add below part to our Jenkinsfile in the same level with stages and push our changes.

post{
        always {
            echo 'Slack Notifications'
            slackSend channel: '#jenkinscicd',
                color: COLOR_MAP[currentBuild.currentResult],
                message: "*${currentBuild.currentResult}:* Job ${env.JOB_NAME} build ${env.BUILD_NUMBER} \n More info at: ${env.BUILD_URL}"
        }
    }

Voila! We get our Notification from slack.
